IKONA4926UU/NA4926U/LRTZ13015051軸承
- 軸承型號：NA4926UU/NA4926U/LRTZ13015051
- 系列：滾針軸承9
- 品牌：IKO
IKO NA4926UU/NA4926U/LRTZ13015051軸承,滾針軸承9，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取IKO NA4926UU/NA4926U/LRTZ13015051配合安裝尺寸,基本尺寸,滾子粒數,NA4926UU/NA4926U/LRTZ13015051價格,外形尺寸,錐度,軸承的圖紙、樣品、價格或者替換產品等！我們是IKO軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
IKONA4926UU/NA4926U/LRTZ13015051軸承參數
-
系列滾針軸承9
-
型號NA4926UU/NA4926U/LRTZ13015051
-
Boundary dimensions mm
- d
- D
- B
- C
- r smin(1)
- Fw
- 130
- 180
- 51
- 50
- 1.5
- 150
-
Identification number
- With two seals
- With one seal
- With two seals
- With one seal
- NA 4926UU
- NA 4926U
- ─
- ─
-
Mass (Ref. )g4 080
-
Standard mounting dimensions
- da
- Da
- Min.
- Max.
- Max.
- 138
- 148
- 172
-
Basic dynamic load rating
- C
- N
- 206 000
-
Basic static load rating
- C0
- N
- 511 000
-
Allowable rotational
- speed(2)
- rpm
- 1 300
-
Assembled inner ring
- LRTZ 13015051

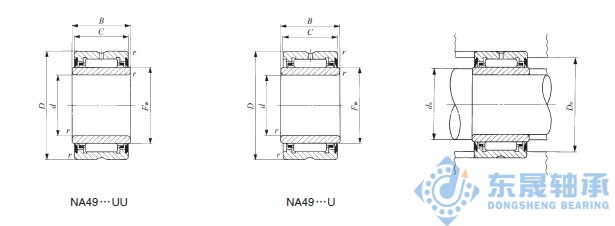

- 滾針軸承9系列 NA4926UU/NA4926U/LRTZ13015051圖片
