NTNNN3040/NN3040K軸承
- 軸承型號：NN3040/NN3040K
- 系列：雙列圓柱滾子軸承
- 品牌：NTN
NTN NN3040/NN3040K軸承,雙列圓柱滾子軸承，軸承內圈,外圈更多詳細資料您可致電我司，此軸承型號本公司有現貨，獲取NTN NN3040/NN3040K配合安裝尺寸,安裝尺寸,重量,額定動負荷,載荷,NN3040/NN3040K極限轉速,游隙,軸承的圖紙、樣品、價格或者替換產品等！我們是NTN軸承最佳代理商，所售產品均為原裝正品，請您放心購買！ 訂購電話：021-36539288 ,021-36539299
NTNNN3040/NN3040K軸承參數
-
系列雙列圓柱滾子軸承
-
型號NN3040/NN3040K
-
Boundarydimensions
mm- d
- D
- B
- rsmin2
- 200
- 310
- 82
- 2.1
-
Basic load ratings
- dynamic
- static
- dynamic
- static
- kN
- kgf
- Cr
- Cor
- Cr
- Cor
- 655
- 1,170
- 66,500
- 119,000
-
Limiting speeds
- rpm
- grease
- oil
- 1,900
- 2,300
-
Bearing numbers
- type NNU
- type NN
- cylindrical bore
- tapered bore
- cylindrical bore
- tapered bore
- ―
- ―
- NN3040
- NN3040K
-
Dimensions
- mm
- Fw
- Ew
- max
- max
- ―
- 282
-
Abutment and fillet dimensions- mm
- da
- db
- dc
- dd
- Da
- Db
- min
- min
- max
- min
- min
- max
- min
- ras max
- 211
- 218
- ―
- ―
- ―
- 299
- 285
- 2
-
Mass
- kg
- type NNU
- type NN
- cylindrical bore
- tapered bore
- cylindrical bore
- tapered bore
- ―
- ―
- 21.6
- 20.8

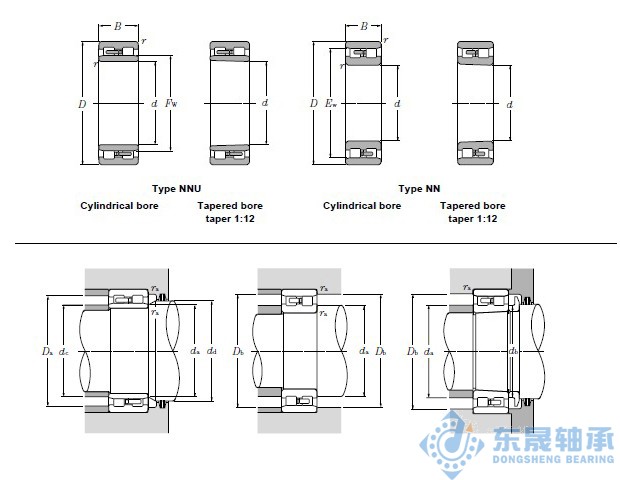

- 雙列圓柱滾子軸承系列 NN3040/NN3040K圖片
